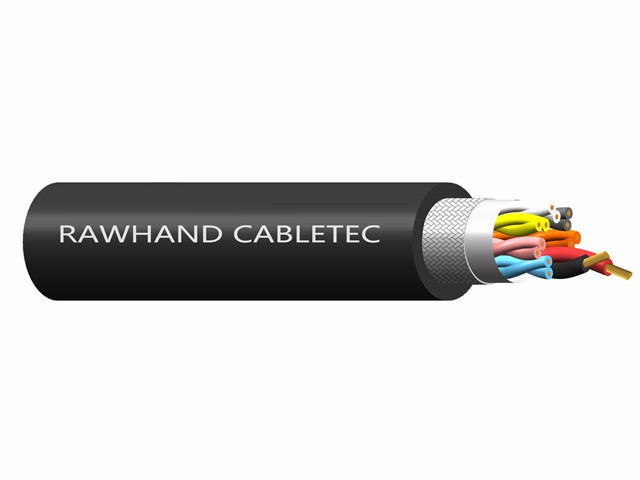

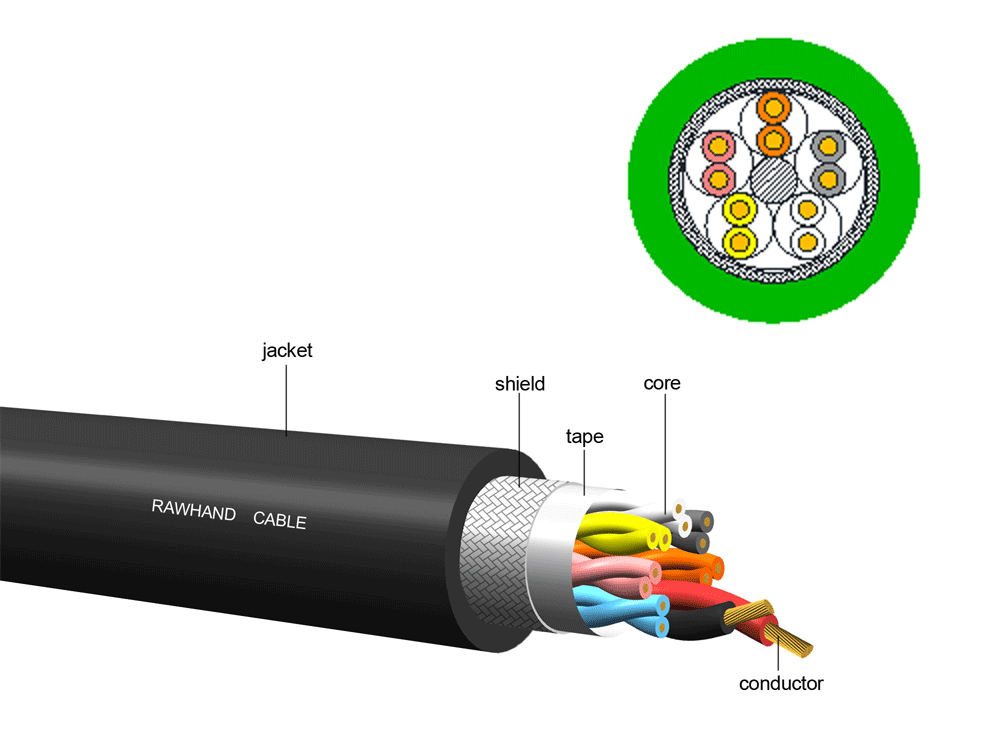

可定制化防干扰外径细
|
芯线数和导体标称截面积 |
芯线外径 |
电缆外径 |
导体直流阻抗 |
绝缘阻抗 |
成品允许电流 |
|
㎜2 |
mm |
mm |
Ω/KM |
MΩ·KM |
A |
|
2P0.2(24AWG) |
1.5 |
7.3 |
94.3 |
10 |
5.7 |
|
3P0.2(24AWG) |
1.5 |
7.7 |
94.3 |
4.9 |
|
|
4P0.2(24AWG) |
1.5 |
8.3 |
94.3 |
4.5 |
|
|
8P0.2(24AWG) |
1.5 |
10.4 |
94.3 |
3.6 |
|
|
6P0.2+1P0.34(22AWG) |
1.5/1.65 |
10.1 |
94.3/59.3 |
3.7/4.7 |
|
|
2P0.34(22AWG) |
1.7 |
7.9 |
59.3 |
7.5 |
|
|
3P0.34(22AWG) |
1.7 |
8.4 |
59.3 |
6.4 |
|
|
4P0.34(22AWG) |
1.7 |
9.2 |
59.3 |
5.9 |
|
|
8P0.34(22AWG) |
1.7 |
11.6 |
59.3 |
4.7 |
|
|
6P0.34+1P0.52(20AWG) |
1.65/1.8 |
10.9 |
59.3/38.8 |
4.9/6.0 |
